Aligment system on which you can rely
All parts of systems have been constructed to resist a harsh treatment and to be easily installed. The robust construction of aluminium and stainless steel is a guarantee of stable results and reliable alignment even in the most demanding environment. Instruction displayed on the screen lead the user step by step throughout the whole measuring process. On the screen, there are displayed the current values which allow to align the machine easily into the right position. The adjustable resolution of the screen is 0,001 mm.
Final display for shaft aligment
- Value of the parallel shift
- Angle misalignment
- Symbols of arrows indicate a current position of the machine
- Values of pads/correction
Pads
Standard pads

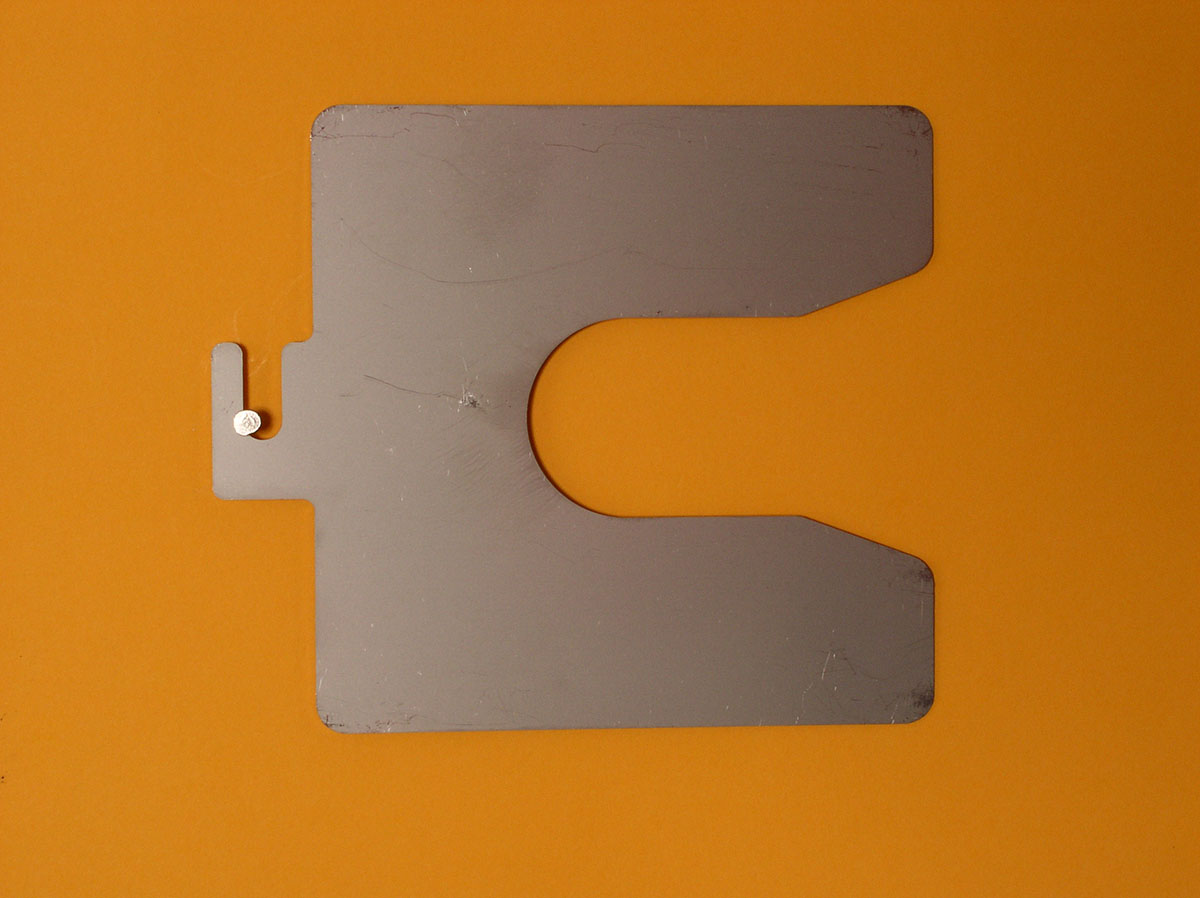

Pads serve as an underlying material for the precise alignment of machines. They are made in the square size A = 50, 75, 100, 125 mm. In thickness from 0,05 to 4 mm. The pads are manufactured from the materials of class 17 (stainless steel).
- Pads of all sizes – Easy application!
- Pads with labelled thickness – Quick identification!

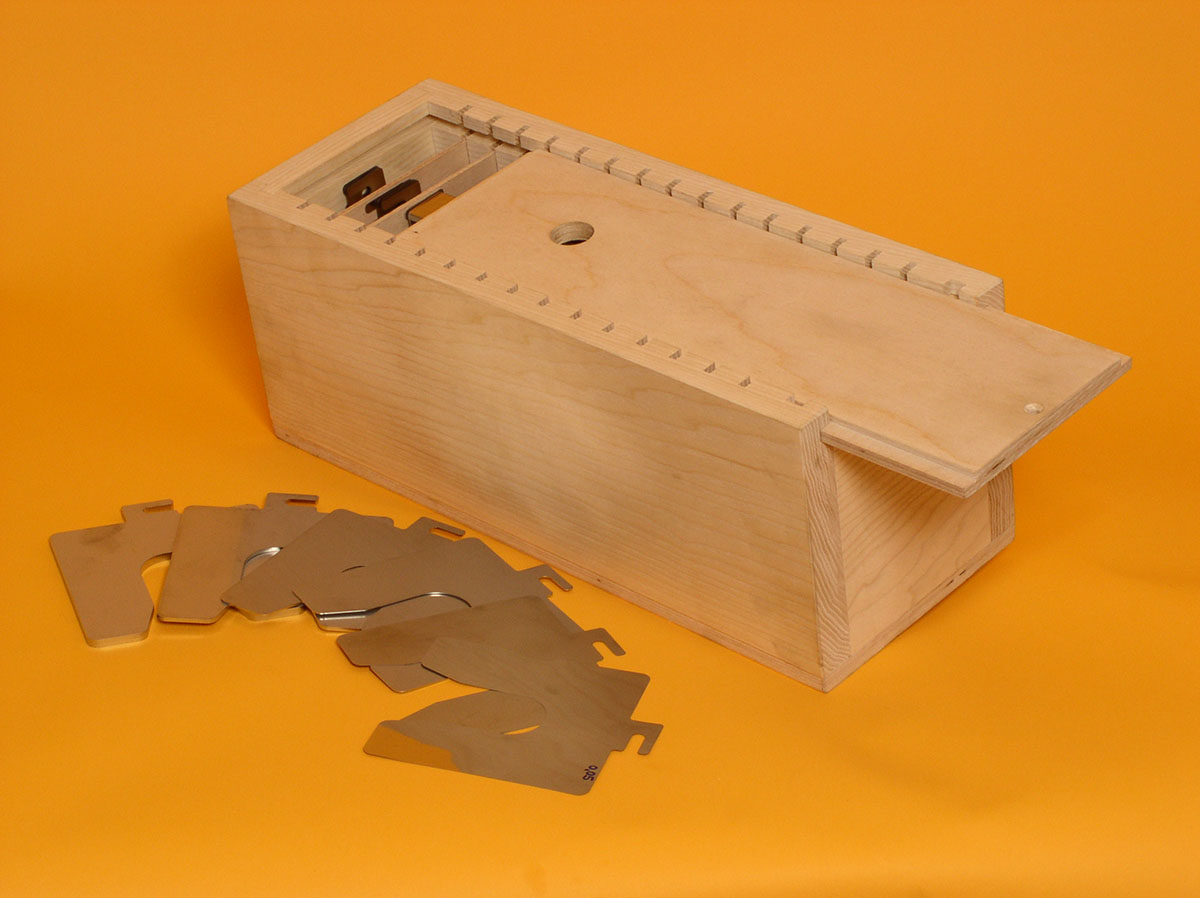

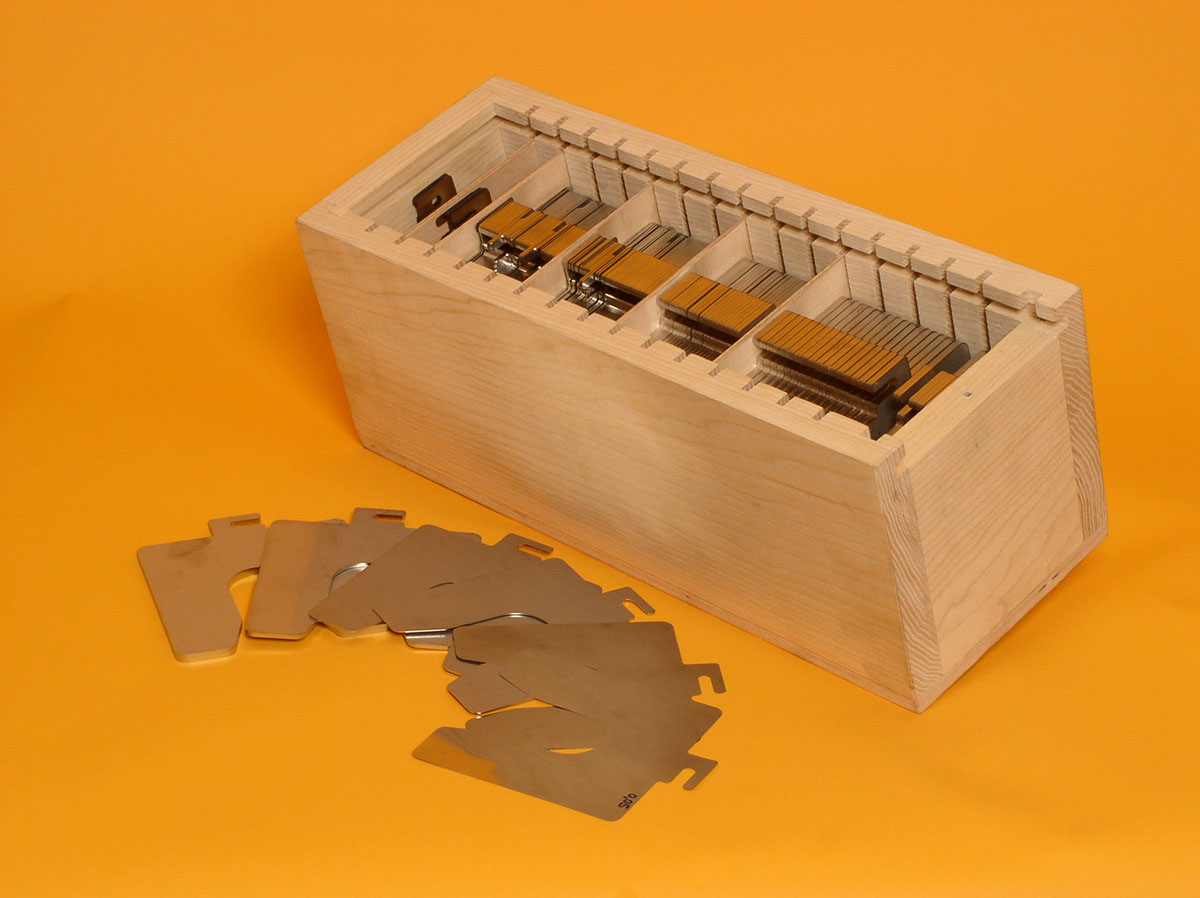

- Compact and light cases for the pads – Easy manipulation!
- High quality stainless steel – Reliable!
Non-standard pads
The pads are delivered practically in any size and thickness. The source for the manufacturing is a design or a draft. It is suited to underlay large transmissions, columns of the machine construction, pumps. Thickness of the material is up to 10 mm.

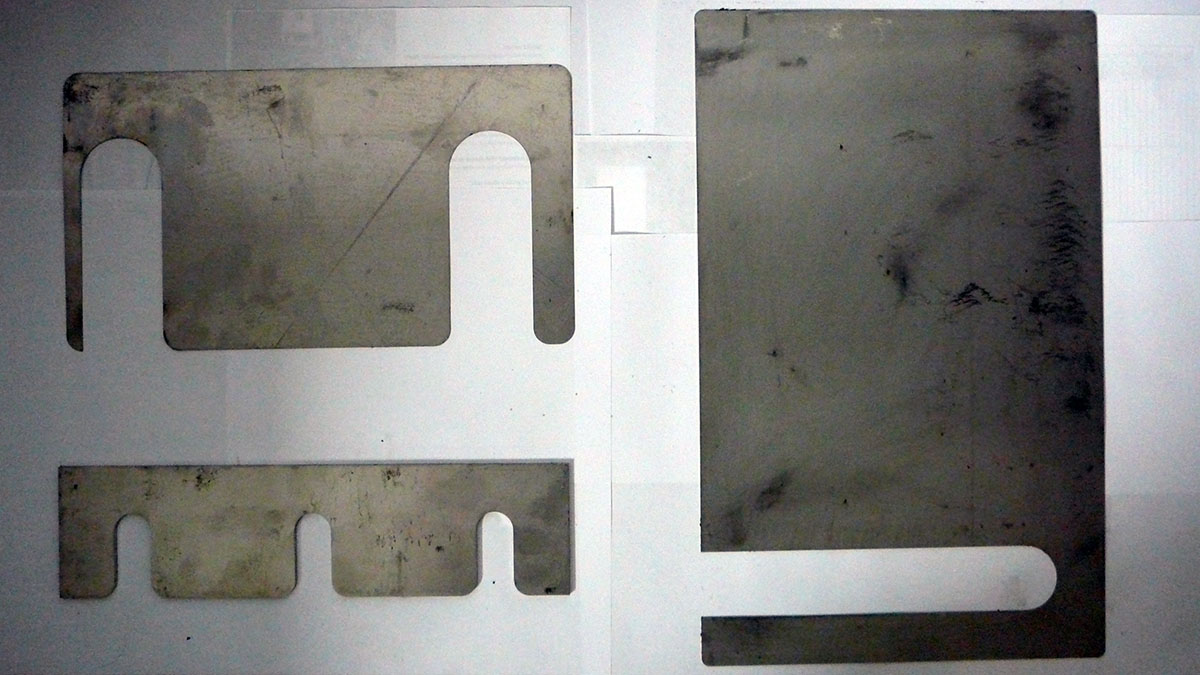

Examples of shapes for non-standard pads
Other aplications test test
In a leaflet of the measuring system you can find technical specifications, for more information about the systems and the products, please contact us. Overview of products – available for download in different languages from www.easy-laser.com and www.damalini.com.
